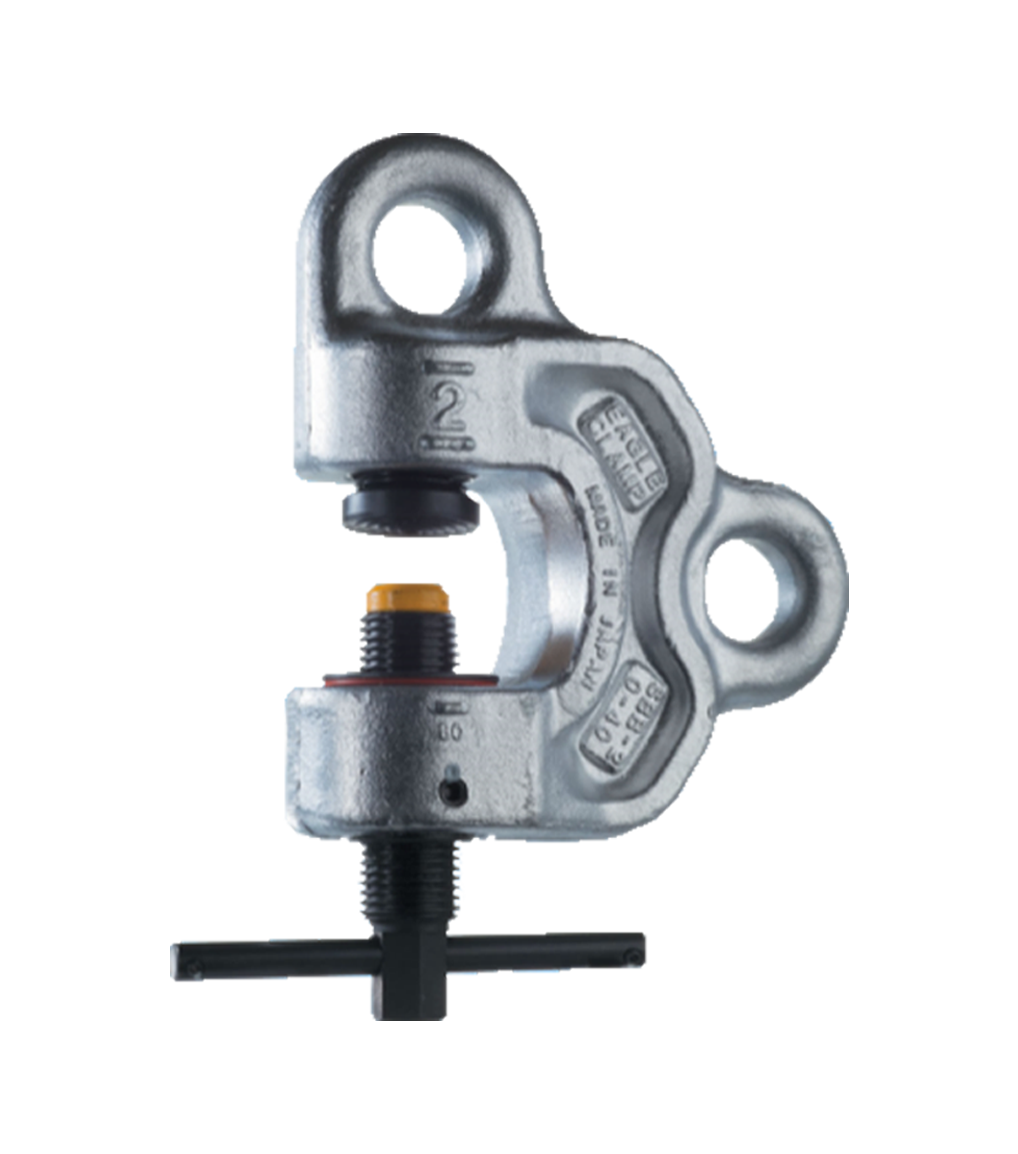

Twin shackle for all-direction pulling, handy for shifting irregular-shaped objects
- Clamp screw can be tightened using ratchet wrench
Applications · Loading materials
- Application
Lifting, transporting, suspending, turning,
rotating, welding, assembling, erecting,loading, pressing, bending, lifting pieces,pulling pieces, safety belt mounting pieces
- Loading materials
Steel plates, shaped-steel, flat steel, steel joists, iron-frames, bridges, steel structures, steel frames, steel sheet piles, crane beams, columns, formed heads, pipes, transverse members for shipbuilding, etc.
Features
- Worldwide patent for automatic clamping mechanism (all-direction) with spherical swivel jaw that grips the load firmly/ Grip is proportional to the weight of the load
- Double safety structure with screwtype vise and automatic clamping mechanism
- Twin shackle that can lift multidirection
- With spring-type pressure nut (lock device)
- Clamp screw and spherical swivel jaw are made of induction-hardened special steel alloy
- Precisely forged special steel alloy body
- Quick and reliable attach/release with patented spring collar
- Galvanized finish
